Laser cutting machine
Our precision-engineered laser cutting machines deliver clean, accurate cuts for a wide range of glass processing needs.
Our automatic lines run 24/7 in premier tableware facilities worldwide
From manual blowing to Blow-blow and Press-blow machines, we offer cost-effective solutions and the finest edge quality, tailored to meet your specific production requirements.
BBK’s high-speed crack-off lines provide the most advanced solution for processing beadless glasses, fully compatible with Press-Blow and Blow-Blow equipment.

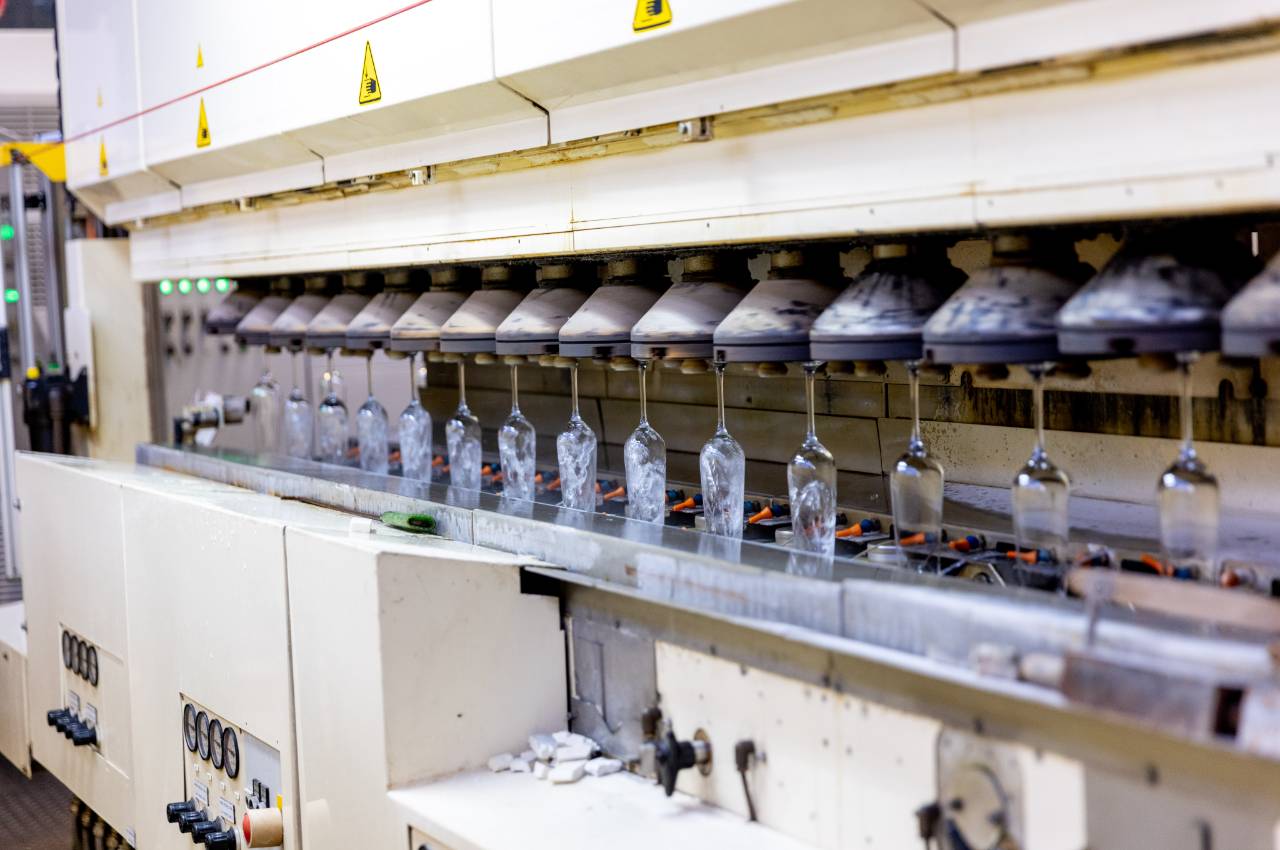

Delivered as complete lines, the S-machines are specifically designed for continuous production of stemware and tumblers. With high performance and efficiency, they can process beadless glasses in soda-lime, barium, or crystal at speeds ranging from 1 to 80 pieces per minute.
Our range allows customers to find the ideal solution based on the number of sections in their blowing machine.
2 laser cutting configurations by BBK
BBK offers two robust and highly efficient laser cutting configurations, both designed for industrial applications.
Generation 2 Laser Cutting
Widely used with over 70 machines in operation globally.

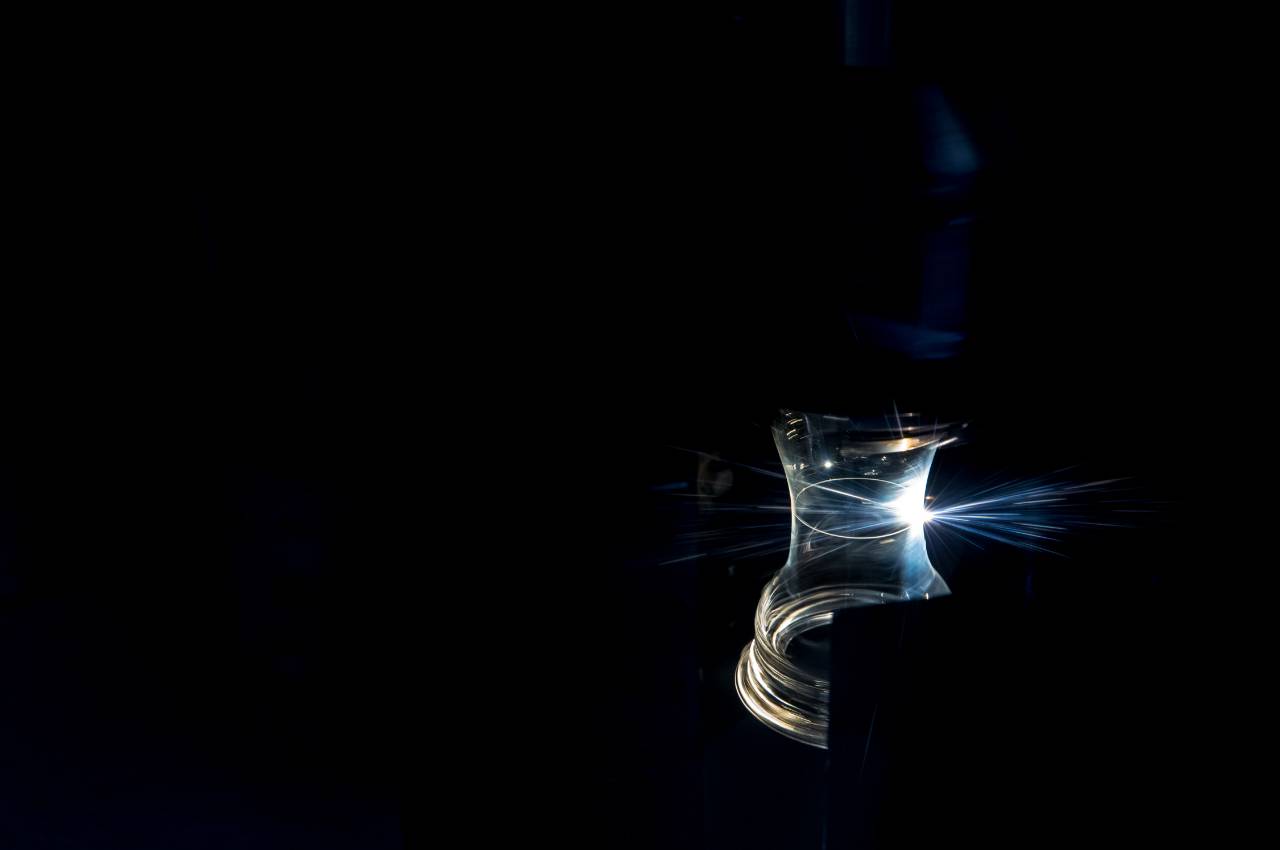

Utilizes a 2-step thermal shock process:
- Step 1: CO2 laser focuses to create a breach on the glass surface
- Step 2: Laser defocuses to heat the glass, leading to the separation of the finished item from the moil
Followed by:

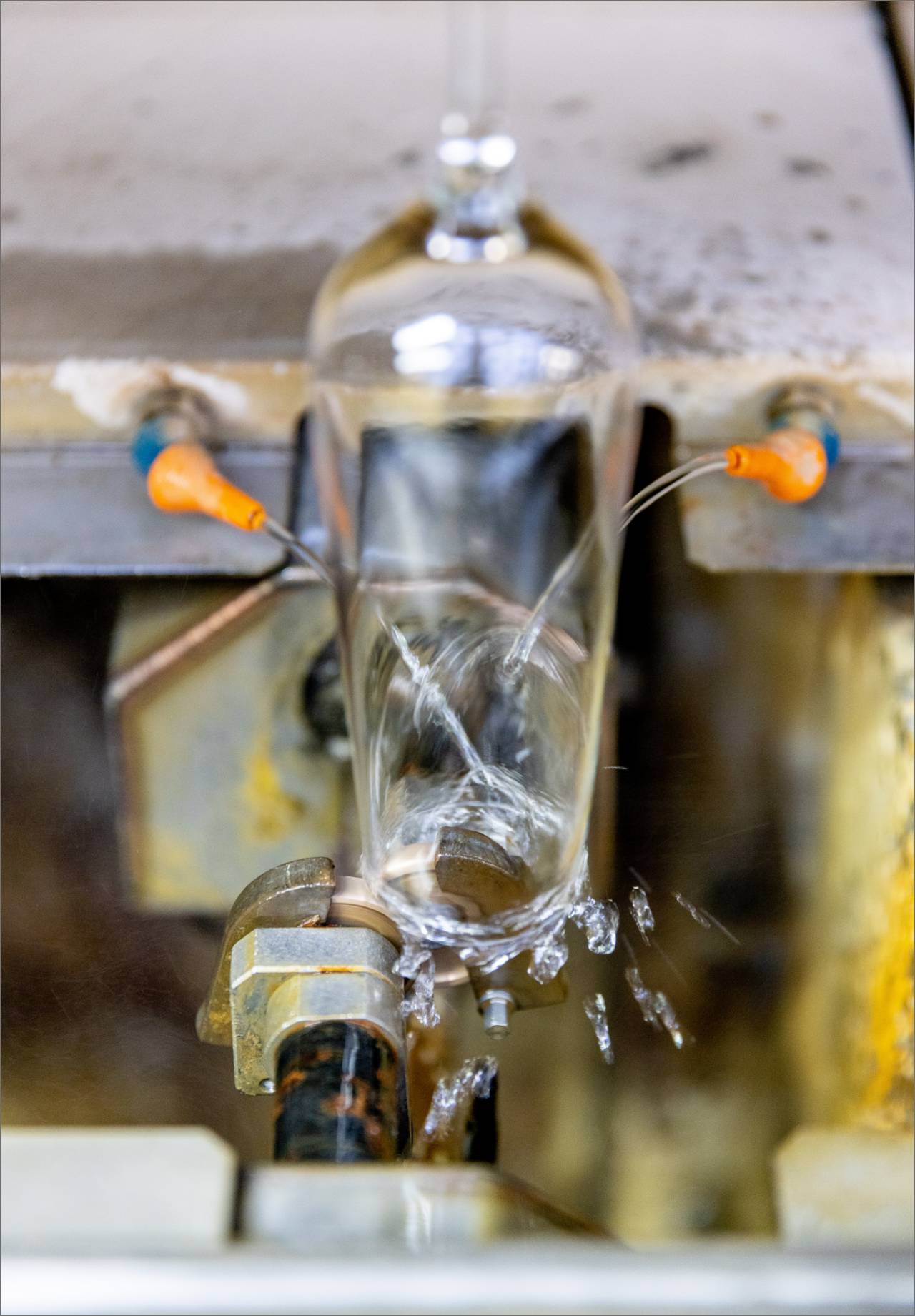

- Grinding stations for a perfectly flat rim
- Beveling station to bevel the rim
These finishing operations ensure the highest rim quality available on the market.
“BBKleave” Laser Cutting
- Newly introduced on BBK machines using a high-power picosecond laser
- Operates in a 2-step process:
- Step 1: The laser creates “small holes” in the glass
- Step 2: A thermal source (CO2 laser or burners) separates the finished item from the moil
- First Version:
- Features only the “BBKleave” process
- Produces a finished rim without beveling
- Recommended for very thin glass, legs, or intermediate rim quality
- Second Version:
- Combines “BBKleave” with grinding and beveling operations
- Offers flexibility to either use BBKleave alone (no dust or water required) or follow up with grinding/beveling for the best rim quality
For manual production, BBK offers the Compact 6 and Combi 12 machines.
For manual production, BBK offers the Compact 6 and Combi 12 machines.

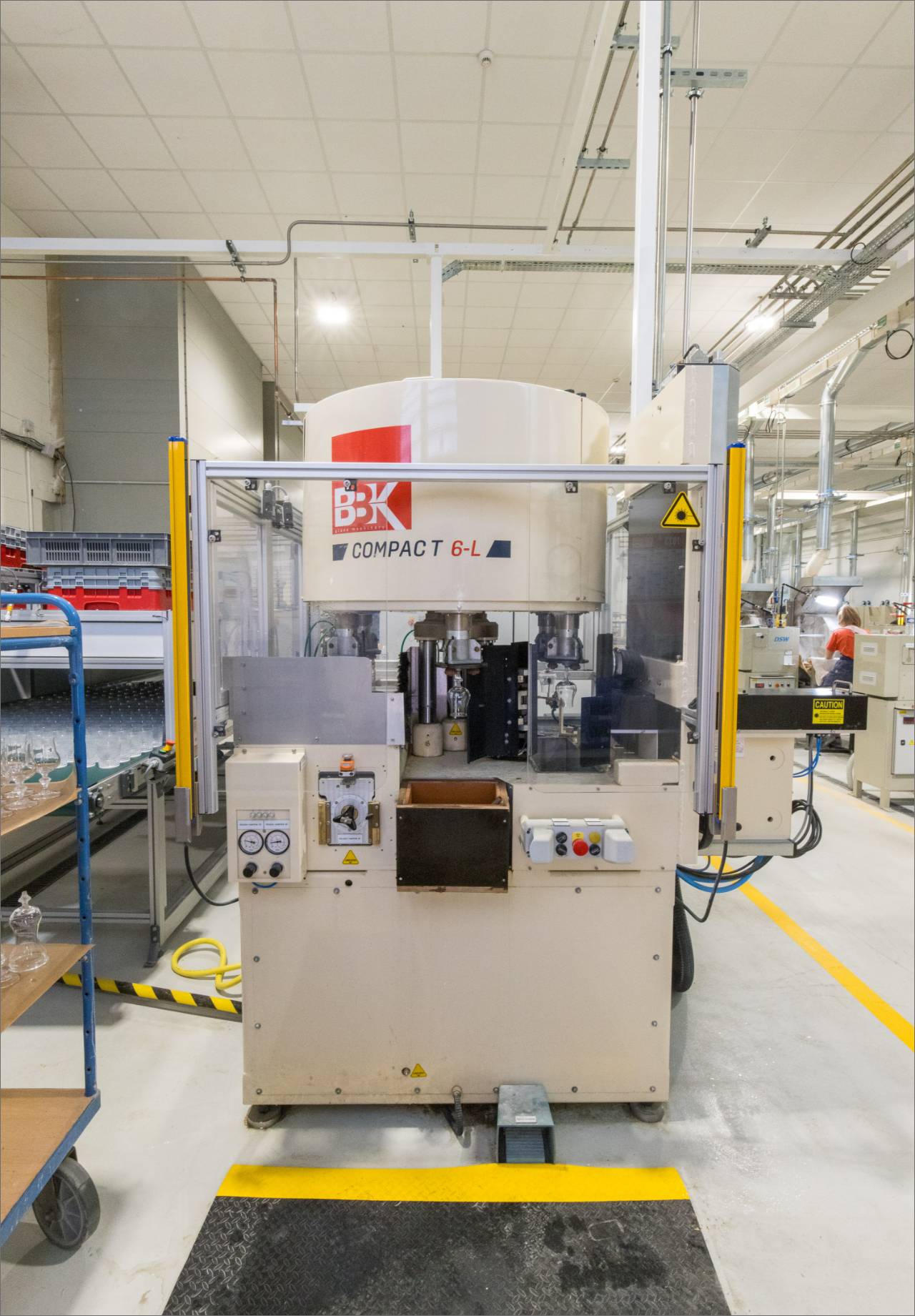

The Compact 6 incorporates all the processes found in the S machines, including cutting and diamond finishing operations.
The Combi 12 is designed specifically for larger items, providing more grinding positions and reinforced checks to securely handle heavier pieces.
Get in touch with us today!
Whether you have a question, need more details,
or want to discuss your project, our team is ready to assist you.
